পণ্যের বিবরণ

Created with Pixso. বাড়ি Created with Pixso. পণ্য Created with Pixso.
টাইটানিয়াম শীট
Created with Pixso.

?

?

ব্র্যান্ড নাম: LHTi
মডেল নম্বর: টাইটানিয়াম শীট
MOQ.: 50 কেজি
অর্থ প্রদানের শর্তাবলী: টি/টি, , এল/সি, ওয়েস্টার্ন ইউনিয়ন
সরবরাহের ক্ষমতা: প্রতি মাসে 200000 কেজি
বিস্তারিত তথ্য
উৎপত্তি স্থল:
চীন
সাক্ষ্যদান:
ISO9001:2015; TUV; SGS;BV
স্ট্যান্ডার্ড:
ASTM B265
প্রযুক্তি:
কোল্ড রোল্ড
আকৃতি:
বর্গক্ষেত্র
সারফেস:
পালিশ, অ্যাসিড ওয়াশিং
প্যাকেজিং বিবরণ:
অতিরিক্ত সুরক্ষার জন্য নরম ফেনা সহ পাতলা পাতলা কাঠের বাক্স
যোগানের ক্ষমতা:
প্রতি মাসে 200000 কেজি
বিশেষভাবে তুলে ধরা:

গ্রেড 2 টাইটানিয়াম ফয়েল শীট

,

টাইটানিয়াম খাদ শীট ধাতু

,

ওয়ারেন্টি সহ খাঁটি টাইটানিয়াম শীট

পণ্যের বর্ণনা

গ্রেড ২ টাইটানিয়াম ফয়েল কোল্ড রোলড এএসটিএম বি২৬৫

This Grade 2 titanium foil is a thin, cold rolled sheet to ASTM B265 with a polished or acid washed surface, supplied in square form. This Grade 2 titanium foil is a thin, cold rolled sheet to ASTM B265 with a polished or acid washed surface, supplied in square form. এই গ্রেড ২ টাইটানিয়াম ফয়েল একটি পাতলা, ঠান্ডা ঘূর্ণিত শীট যা একটি পোলিশ বা অ্যাসিড ধোয়া পৃষ্ঠের সাথে, স্কয়ার আকারে সরবরাহ করা হয়।উচ্চ শক্তি এবং চমৎকার জারা প্রতিরোধের, তাই এটি সামুদ্রিক সরঞ্জাম, গ্যাস টারবাইন ইঞ্জিন, তাপ এক্সচেঞ্জার, condensers, desalination উদ্ভিদ, ডেন্টাল খাদ, পলপ এবং কাগজ সরঞ্জাম এবং centrifuges একটি গুরুত্বপূর্ণ ভূমিকা পালন করে।পাতলা ফয়েল হালকা এবং নমনীয়।যা এটিকে সমুদ্রের পানির পাইপিং লাইনিং, মেডিকেল ইমপ্লান্ট, ইলেক্ট্রোকেমিস্ট্রি, স্টিম টারবাইন, খাদ্য ও ওষুধ শিল্প, তেল পরিশোধন এবং গ্যাস শিল্প, জুয়েলারী,architecture and domestic appliances (আর্কিটেকচার এবং গৃহস্থালি যন্ত্রপাতি).

টেকনিক্যাল স্পেসিফিকেশন

পণ্য টাইটানিয়াম ফয়েল, টাইটানিয়াম শীট।
উপাদান গ্রেড ২ টাইটানিয়াম (এছাড়াও Gr1, Gr5, Gr7, Gr12)
স্ট্যান্ডার্ড এএসটিএম বি২৬৫
প্রযুক্তি ঠান্ডা ঘূর্ণিত
আকৃতি বর্গক্ষেত্র
উপরিভাগ পোলিশ, এসিড ওয়াশিং
ক্ষয় প্রতিরোধের চমৎকার

রাসায়নিক গঠন (%)

গ্রেড এন সি এইচ Fe ও আল V Pd নি মো টিআই
Gr1 0.03 0.08 0.015 0.20 0.18 - - - - - বোল
Gr2 0.03 0.08 0.015 0.30 0.25 - - - - - বোল
Gr5 0.05 0.08 0.015 0.40 0.20 5.৫-৬75 3.৫-৪.5 - - - বোল
Gr7 0.03 0.08 0.015 0.30 0.25 - - 0.১২-০25 - - বোল
Gr12 0.03 0.08 0.015 0.30 0.25 - - - 0.২-০।4 0.৬-০9 বোল

প্রসার্য প্রয়োজনীয়তা

গ্রেড টেনসিল স্ট্রেনথ প্রসার্য শক্তি MPa Yield strength কি ইন্ডেক্স শক্তি MPa প্রসারিত %
1 35 240 20 138 24
2 50 345 40 275 20
5 130 895 120 828 10
7 50 345 40 275 20
12 70 438 50 345 18

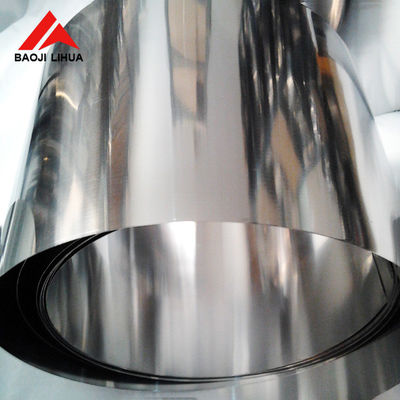

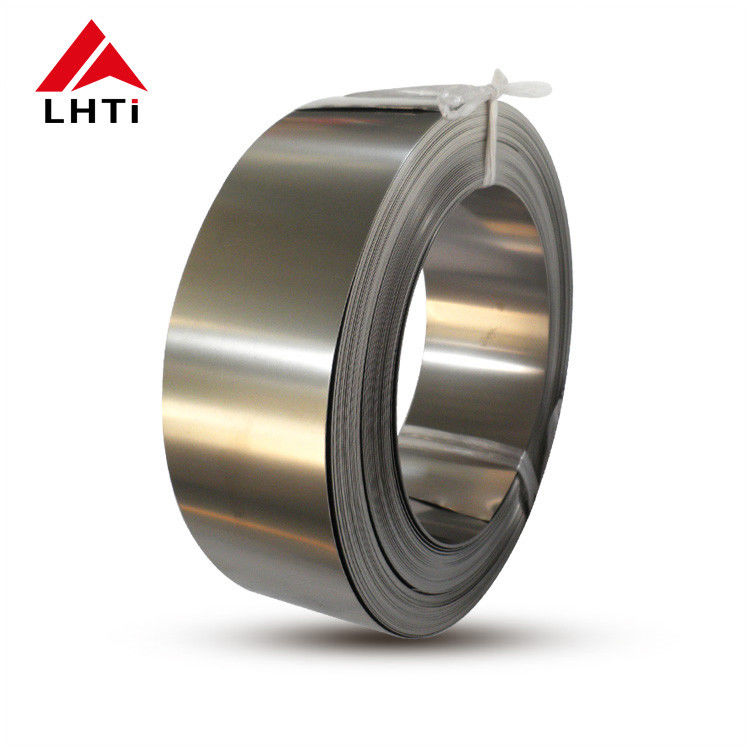

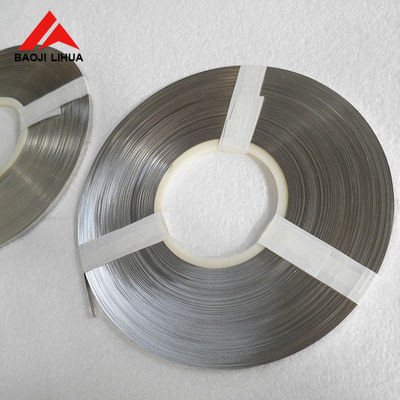

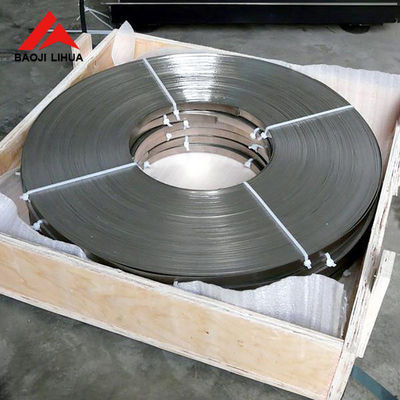

পণ্যের ছবি

Grade 2 titanium foil cold rolled ASTM B265

অ্যাপ্লিকেশন

The foil is used where a thin, light and corrosion resistant metal is needed. Typical uses include heat exchangers and condensers, desalination plants, marine and seawater piping, and the like. typical uses include heat exchangers and condensers, desalination plants, marine and seawater piping. typical uses include heat exchangers and condensers, desalination plants, marine and seawater piping. typical uses include heat exchangers and condensers, desalination plants, marine and seawater piping. typical uses include heat exchangers and condensers, desalination plants, marine and seawater piping. typical uses include heat exchangers and condensers, desalination plants, marine and seawater piping.গ্যাস টারবাইন এবং বাষ্প টারবাইন অংশ, দাঁতের খাদ এবং চিকিৎসা ইমপ্লান্ট, রাসায়নিক এবং ইলেক্ট্রোকেমিস্ট্রি শিল্প, তেল পরিশোধন এবং গ্যাস শিল্প, খাদ্য ও ওষুধ শিল্প, জুয়েলারী এবং স্থাপত্য।,length and surface finish can be produced to the customer requirement, and the material is supplied to ASTM B265. length and surface finish can be produced to the customer requirement, and the material is supplied to ASTM B265. length and surface finish can be produced to the customer requirement, and the material is supplied to ASTM B265.
