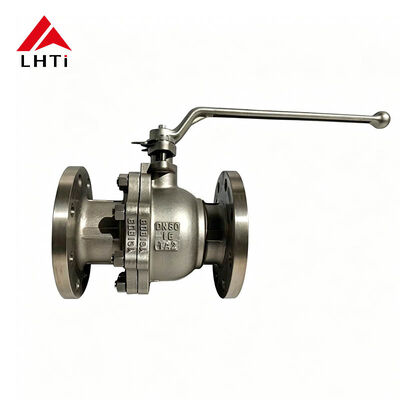

TA2 Titanium Alloy Ball Valve Q41F Corrosion Resistant Class 150-2500 with Fire-Safe Design for Chemical Pipelines

The TA2 titanium alloy ball valve is designed for use in pipelines conveying water, gas, oil products, natural gas, and acid-base corrosive media. It is primarily used to cut off or connect media in pipelines, and can also be used for fluid regulation and control. Compared with other types of valves, it offers the following key advantages:

• Minimal fluid resistance (even reduced-bore ball valves have very low flow resistance)
• Stable and smooth operation due to reduced operating torque from thrust bearings
• Excellent sealing performance with PTFE seats that improve with higher fluid pressure
• Long service life thanks to low friction between the ball and seat
• Anti-static design prevents electrostatic discharge risks
• Fire-safe design ensures sealing integrity in fire scenarios

1. Low Flow Resistance: The full-bore ball valve provides an unobstructed flow path, minimizing pressure drop across the valve.
2. Reliable Sealing: The PTFE seat offers excellent sealing performance, with the sealing force increasing with fluid pressure for zero leakage.
3. Long Service Life: Low friction between the ball and seat reduces wear, extending the valve's operational life.
4. Anti-Static Design: Springs between the ball, stem, and body conduct static electricity, preventing ignition risks in flammable media.
5. Fire-Safe Structure: The body and stem form a metal-to-metal seal in case of fire damage to the soft seat, preventing catastrophic leakage.
6. Easy Maintenance: The top-entry design allows for in-line maintenance of internal components, reducing downtime.

• Actuator Type: GT/AT pneumatic actuators (double-acting or spring return), electric actuators, hydraulic actuators
• Optional Accessories: Solenoid valves, limit switches, positioners, air filter regulators, handwheels
• Air Supply Pressure: 0.4~0.7MPa

• Design & Manufacturing: GB12237, API 6D, API 608, BS5351, DIN3357
• Flange Standard: JB/T79, GB9112~9131, HGJ44, ANSI B16.5, DIN2543
• Face-to-Face: GB12221, ANSI B16.10, JIS B2002, DIN3202
• Testing & Inspection: JB/T9092, API 598
